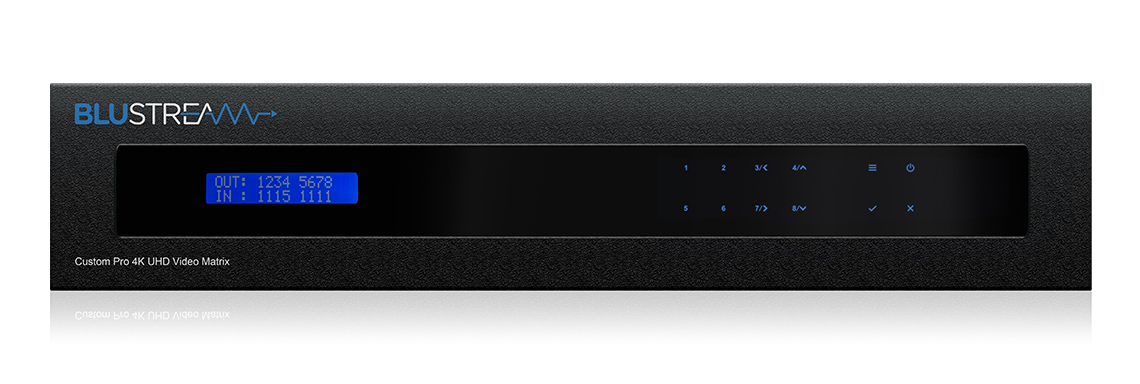

The Custom Pro 4K Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The updated 2019 Custom Pro Matrix has a new front touch panel and also includes independent down-scaling of 4K video inputs via any CSC HDBaseT™ output board. This allows for legacy displays only capable of supporting lower video resolutions to receive their optimum resolution while still showing maximum original 4K UHD resolution on the higher-definition displays.

The Custom Pro Matrix is specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.

Product Features

Pre Configured Models

With a Custom Pro Matrix you can choose the configuration that best suits the installation, however we have also prepared some pre-configured alternatives that boast audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through and a web browser interface module for enhanced control. The new Custom Pro solution is the perfect choice for installations that aspire to deliver the very latest 4K HDR resolutions.

PRO88HBT100CS – Custom Pro 8×8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 70m) – Supports 4K HDR, IP & RS-232 Control, PoE, 2-Way IR, 4 x Simultaneous outputs, Audio Breakout with volume control

Our 100m Custom Pro 8×8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market. The PRO88HBT100CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 100m over a single CAT cable (4K HDR up to 70m) with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.

PRO88HBT70CS – Custom Pro 8×8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m) – Supports 4K HDR, IP Control, PoE, 2-Way IR, 4 x Simultaneous HDMI outputs , Audio Breakout with volume control

Our 70m Custom Pro 8×8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market. The PRO88HBT70CS is a HDMI2.0 4K 60Hz 4:4:4 HDCP2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoH (PoE) up to lengths of 70m over a single CAT cable (4K HDR up to 40m) with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
